Especificación
| Material | Poliuretano termoplástico |
| Medio aplicable | Air, Water, other fluids |
| Embiente y temperatura del fluido | -30℃~+90℃ |
Dureza dureza dureza | 98A ASTM D-2240 |

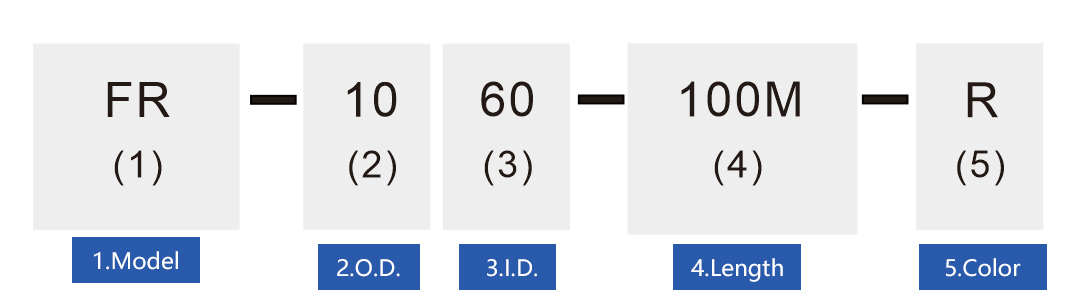

Código de pedido

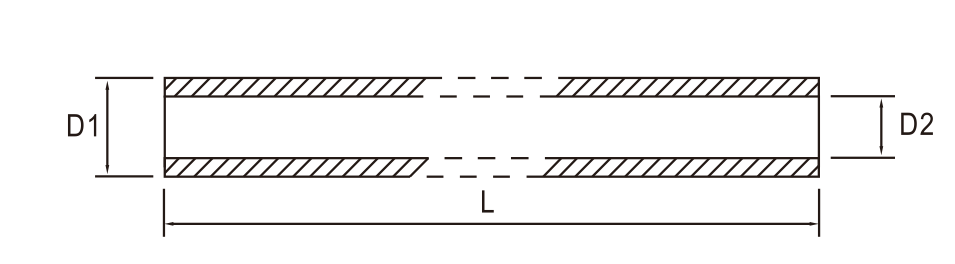

ITEM | D1 | D2 | L | MAX.workingpressureat 20℃（bar） | Max.burstpressureat 20℃（bar） | MAX.bendradiusat 20℃（mm） |
| FR-0640 | 6mm | 4mm | 100m | 14bar | 44bar | 15mm |
| FR-0840 | 8mm | 4mm | 100m | 20bar | 64bar | 20mm |
| FR-0855 | 8mm | 5.5mm | 100m | 12bar | 36bar | 25mm |
| FR-1060 | 10mm | 6mm | 100m | 16bar | 50bar | 35mm |
| FR-1070 | 10mm | 7mm | 100m | 12bar | 36bar | 40mm |
| FR-1280 | 12mm | 8mm | 100m | 13bar | 40bar | 45mm |
| FR-1410 | 14mm | 10mm | 100m | 12bar | 36bar | 60mm |
| FR-1611 | 16mm | 11mm | 100m | 12bar | 36bar | 70mm |
